Taint propagation

Cluster API controllers implement consistent taint propagation across Cluster API resources and from Machines to corresponding Kubernetes Node in the workload cluster. Note: To enable this feature it is required to set the MachineTaintPropagation feature gate to true.

See the proposal Propagating taints from Cluster API to Nodes for more information.

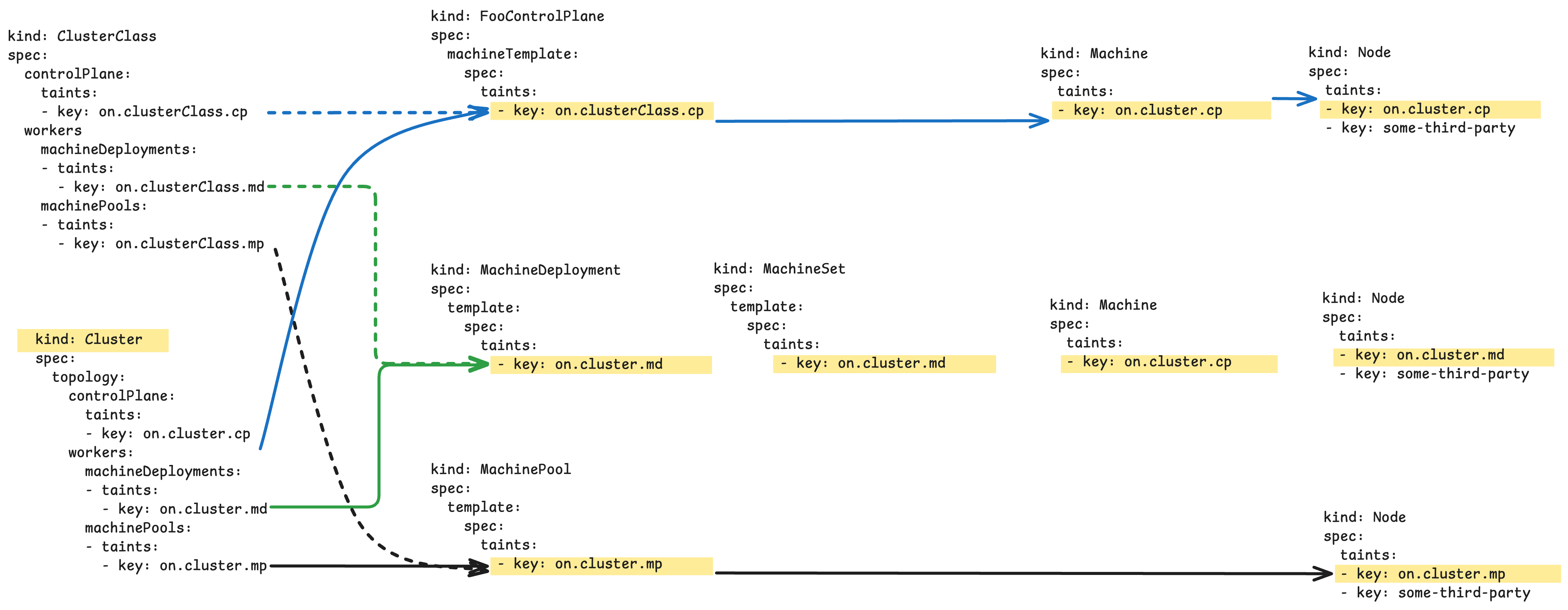

When using Cluster API managed topologies, taint can be set both on ClusterClass or on the Cluster object; the propagation of the taints is summarized in the following table and picture:

Taint set on ControlPlane, MachineDeployment (MachineSet) resources are propagated in-place, without triggering a rollout, to the controlled Machines.

Taint set on the Machine resource are propagated to the corresponding Kubernetes Node in the workload cluster. This operation is performed according to the propagation rule defined for each taint on the Machine object:

• Always:

  • These taints are supposed to be set on the Node object as long as it is defined on its parent core CAPI object.
  • Example: Nodes where only GPU related workload should run
  • Reconciliation behavior:
    • Always taint added to the machine or exists during initialization: reconciliation will add the taint to the node.
    • Always taint removed from machine: reconciliation will remove the taint from the node, if it did add it in the past.
    • Always taint not changed: reconciliation takes care that the taint still exists on the node.

• OnInitialization

  • These taints are supposed to be set once by Cluster API on a Node object.
  • Example: Ensure that no workload gets scheduled to a Node unless the taint got removed to e.g. install a GPU driver before allowing workload.
  • Cluster API should once set the taint on the Node and not add it again if it got removed.

Taint propagation for MachinePools resources is not implemented yet.

Please note that:

• Taints with a key of node.cluster.x-k8s.io/uninitialized or node.cluster.x-k8s.io/outdated-revision cannot be set by users (these taints are managed by Cluster API and providers).
• Taints with the key prefix node.kubernetes.io/ cannot be set by users, except node.kubernetes.io/out-of-service (these taints are managed by the node controller or the kubelet).
• Taints with the key prefix node.cloudprovider.kubernetes.io/ cannot be set by users (these taints are either managed by the kubelet or by a cloud-controller-manager’s node-lifecycle-controller)
• The taint node-role.kubernetes.io/control-plane cannot be set by users on worker nodes.
• The taint node-role.kubernetes.io/master cannot be set by users (deprecated since 1.24)

Notes for the Kubeadm bootstrap provider

If using the kubeadm bootstrap provider, taints can also be added by setting init/joinConfiguration.nodeRegistration.taints.

Adding taints with this approach is almost equivalent to adding an OnInitialization taint on the Machine resource.

The following table describe available options depending on where taints are set or not set [1].

[1]: If the taint are not set on the Machine, CAPBK preserve the same behaviour existing before the implementation of this feature. [2]: Per default kubeadm adds the taint node-role.kubernetes.io/control-plane:NoSchedule to control plane nodes.
